60Pcs 5.08mm Pluggable Screw Terminal Block 2P 3P 4P 300V 10A | Supports 12-24AWG wire, comes with screwdriver and transparent storage box for circuit wiring assembly

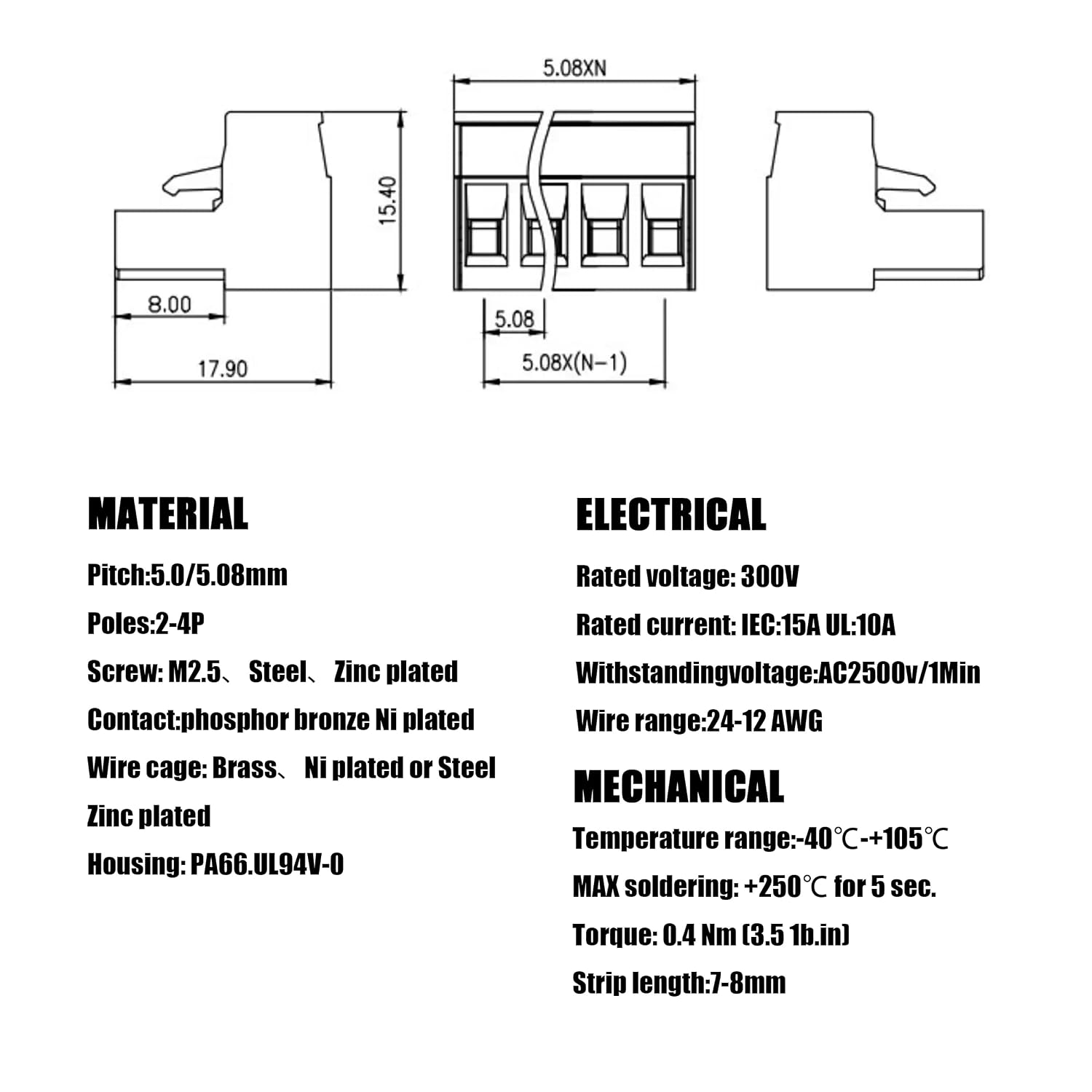

Material and electroplating  Spacing: 5.0/5.08mm  Number of poles: 2P，3P，4P  Screw: M2.5, steel, galvanized  Contact material: phosphor bronze, nickel plated  Square buckle: brass, nickel plated or steel, galvanized  Plastic part: PA66.UL94V-0    Electrical performance  Rated voltage: 300V  Rated current: IEC: 15A, UL: 10A  Withstand voltage: AC2500V / 1min  Used wire diameter: 24-12AWG    Mechanical properties  Temperature range: - 40 ° C ~ + 105 ° C  Instantaneous temperature: 250 ° C 5S  Torque: 0.4nm (3.5lb. In)  Stripping length: 7-8mm  Package Content: 20pcs x 2 Pin 5.08mm Pitch PCB Terminal Block Connector Socket 20pcs x 3 Pin 5.08mm Pitch PCB Terminal Block Connector Socket 20pcs x 4 Pin 5.08mm Pitch PCB Terminal Block Connector Socket  These PCB screws are snap together well.have a quick release capability.Just need to loosen the screws to land the wires.Use high-quality plastic PA66 high temperature resistant V0 flame retardant,steel screw environmentally friendly electroplating,no slippage.  It is installed on the PCB board, Used widely in the electronics, communication equipments, instruments, calculator, automatic control system, domestic appliance and warning devices, PCB wiring, IC Socket, DIY PCB Universal Board, Dupont Line, Digital tube, PIC Programming unit, AVR ATMEL Programming unit,Connector Kit, USB to TLL Modules, Power Modules, RS232 TO TLLModule,Crystal Oscillator, buzzer, LCD Modules,Dupont Line,etc.

• Product Name : PCB Terminal Block;Model : 5.08-2P，3P，4P;Material : Plastic
• Rated Value : AC 300V 10A 12-24AWG;
• Distance : 5.08mm/0.2"
• These PCB screws are snap together well.have a quick release capability.Just need to loosen the screws to land the wires.Use high-quality plastic PA66 high temperature resistant V0 flame retardant,steel screw environmentally friendly electroplating,no slippage.Widely used in electronics,communication equipment,instruments

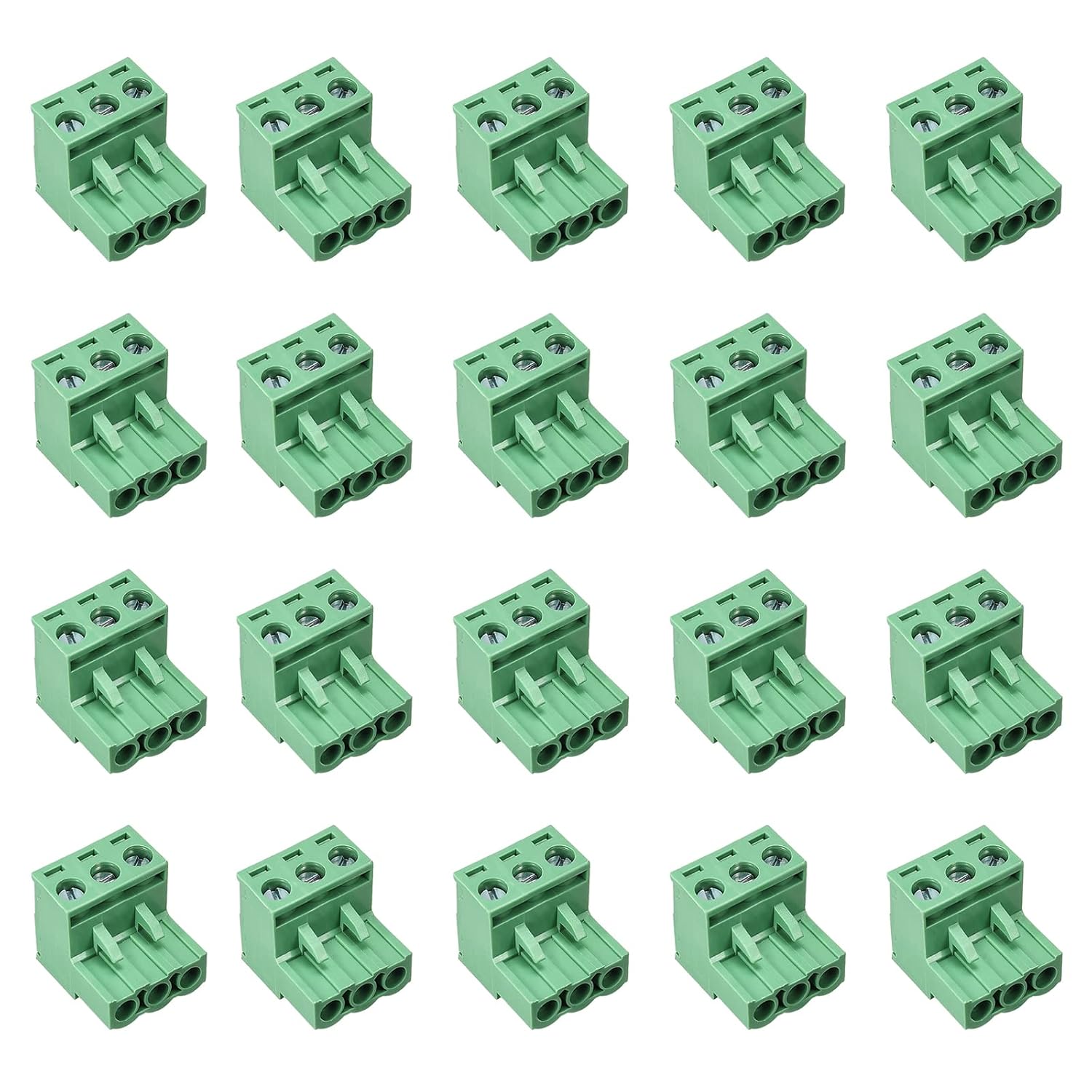

• Package Content: 20pcs x 2 Pin；20pcs x 3 Pin；20pcs x 4 pin 5.08mm Pitch PCB Terminal Block Connector Socket
