Foot Switch, 250V AC 10A Momentary Foot Pedal Controller Foot Operated On Off Switch Anti Slip Foot Pedal Switch for Table Drill Instrument Machine Tool(1M Cable)

Features: Used to frequently switch on and off on-load circuits. According to the equipped trip switch, it can be customized with contact self-locking function, the contact is locked by operating pedal, and the contact is unlocked by the second operating pedal to achieve the alternating or start/ stop operation mode of OFF-ON-OFF. The anti-slip design of the pedal makes the operation more effective, convenient and safe. Adopt double silicon rubber gasket, make waterproof grade can reach IP67, thus guarantee high reliability and safety, adopt limit switch action way to realize high reliability. The limiter adopts adjustable mechanical memory structure with reliable performance and high sensitivity. It is mainly used to control the reverse, direct and stop operation of the motor in the control loop. It can also be used for the direct control of the small motor in the main loop. Suitable for table drill, instrument machine tool, power machine, shearing machine, hydraulic press, medical device, etc. Specification: Model: TFS - 01 Color: black Wiring length: 1m / 3.3ft, 2m / 6.6ft (Optional) Working voltage: 250VAC Rated voltage:250 (VAC) Rated current:10 (A) Contact form: one ON and one OFF Shell material: plastic shell Scope of application: control Foot switch pedal size: 100 * 60 * 33mm / 3.9 * 2.4 * 1.3in Contact resistance: below 50mΩ (first time) Insulation resistance: 100MΩ above, 500 VDC test Medium withstand voltage: 2000V AC, 1 minute time Mechanical life: 100,0000 times Electrical life: 100,000 times Environment temperature: -250℃ ~ + 700℃ (no condensation dew, no icing) Environmental humidity: 45% ~ 85% RH Package List: 1 x Foot Control Switch

• PARAMETER: Item Type: Foot Switch Pedal; Working voltage: 250VAC; Rated current:10A; Contact Resistance: below 50mΩ (first time); Insulation Resistance: 100MΩ above, 500 VDC test; Medium Withstand Voltage: 2000V AC, 1 minute time.
• ADJUSTABLE: The industrial foot switch adopts an adjustable mechanical storage structure, with reliable performance and high sensitivity. Momentary types switch pedal, press down to turn on, and lift foot to turn off.
• PROFESSIONAL: This on off foot switch is not only used to control the reverse, direct and stop operation of the motor in the control loop, but also used for the direct control of the small motor in the main loop.
• NONSLIP DESIGN: The foot switch adopts double silicon rubber gasket design to reach IP67 waterproof grade. With limit switch action way, thus guarantee high reliability and safety.

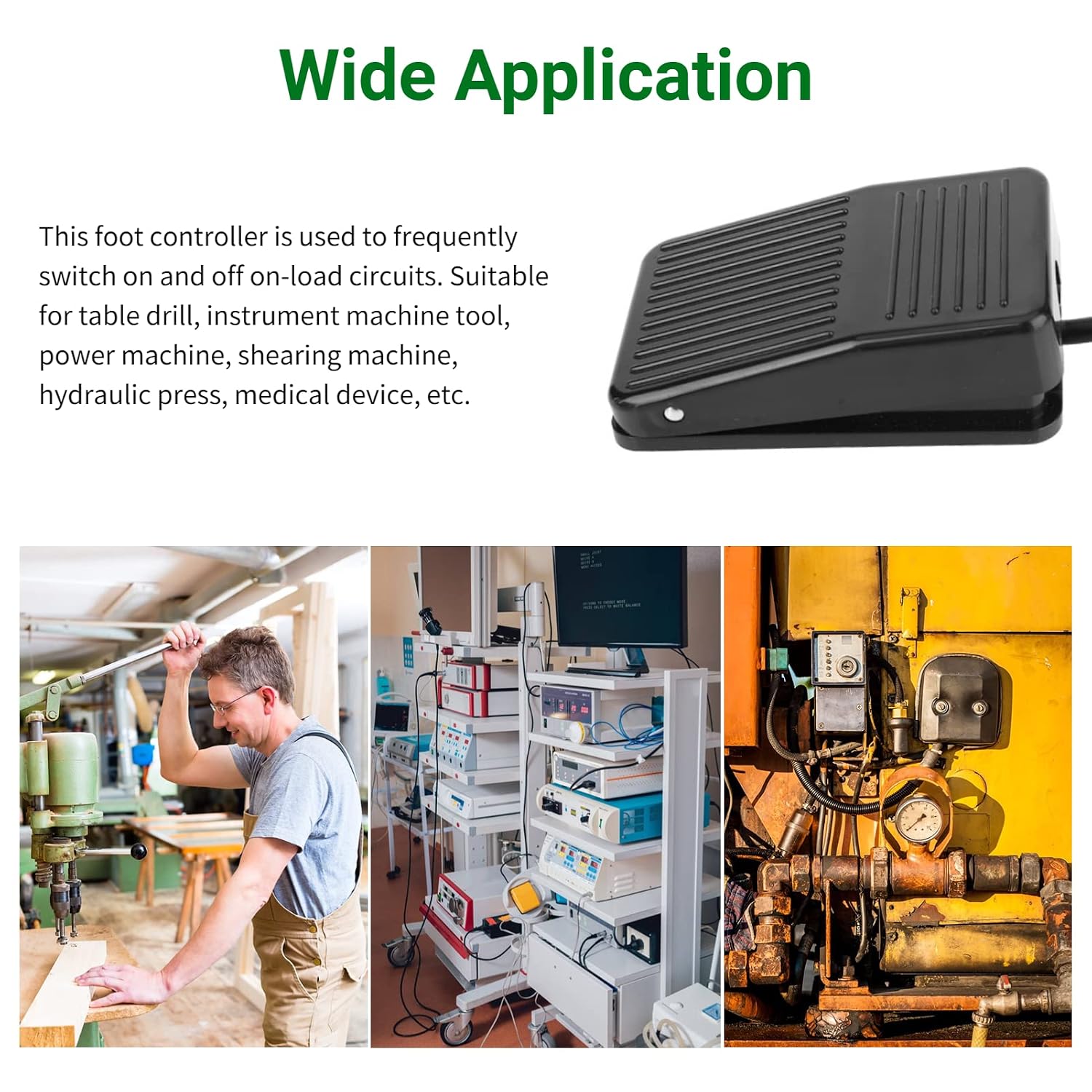

• WIDE APPLICATION: This foot controller is used to frequently switch on and off on-load circuits. Suitable for table drill, instrument machine tool, power machine, shearing machine, hydraulic press, medical device, etc.
